Write HTTP Clients & Servers

Send feedback

Communicate over the internet

What’s the point?

  • Knowledge of Futures and Streams is a prerequisite.
  • The HTTP protocol allows clients and servers to communicate.
  • The dart:io package has classes for writing HTTP programs.
  • Servers listen for requests on a host and port.
  • Clients send requests using an HTTP method request.
  • The http_server package provides higher-level building blocks.

HTTP (Hypertext Transfer Protocol) is a communication protocol used to send data from one program to another over the internet. At one end of the data transfer is a server and at the other end is a client. The client is often browser-based (either a user typing in a browser or a script running in a browser), but might also be a standalone program.

The server binds to a host and port (it makes an exclusive connection to an IP address and a port number). Then the server listens for requests. Because of Fart’s asynchronous nature, the server can handle many requests at a single time, as follows:

  • Server listens
  • Client connects
  • Server accepts and receives request (and continues to listen)
  • Server can continue to accept other requests
  • Server writes response of request or several, possibly interleaved, requests
  • Server finally ends (closes) the response(s).

In Fart, the dart:io library contains the classes and functions you need to write HTTP clients and servers. In addition, the http_server package contains some higher-level classes that make it easier to write clients and servers.

This tutorial provides several examples that show how easy it is to write Fart HTTP servers and clients. Beginning with the hello world of servers, you learn how to write the code for a server from binding and listening to responding to requests. You also learn about the client side: making different kinds of requests (GET and POST), writing browser-based and command-line clients.

Get the source code

  • Get the Fart Tutorials example code.
  • View the httpserver directory, which contains the sources you need for this tutorial.

Run the hello world server

Example file for this section: hello_world_server.dart.

Let’s begin with a small server that responds to all requests with the string Hello, world!

  • At the command line, run the hello_world_server.dart script. You will see the following:

    $ cd httpserver/bin
    $ dart hello_world_server.dart
    listening on localhost, port 4040

  • Then, in any browser, enter localhost:4040. The browser displays Hello, world!

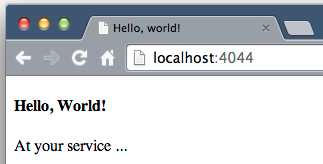

    The response from the hello world server.

In this case, the server is a Fart program and the client is the browser you used. However, you can write client programs in Fart—either a browser-based client script, or a standalone program.

A quick glance at the code

In the code for the hello world server, an HTTP server binds to a host and port, listens for HTTP requests, and writes a response. Note that the program imports the dart:io library, which contains the HTTP-related classes both for server-side programs and for client-side programs (but not for web apps).

import 'dart:io';

main() async {
  var requestServer =
      await HttpServer.bind(InternetAddress.LOOPBACK_IP_V4, 4040);
  print('listening on localhost, port ${requestServer.port}');

  await for (HttpRequest request in requestServer) {
    request.response..write('Hello, world!')
                    ..close();
  }
}
hello_world_server.dart


The next few sections cover server-side binding, making a client-side GET request, listening, and responding.

Binding a server to a host and port

Example for this section: hello_world_server.dart.

The first line of code in main() uses HttpServer.bind() to create an HttpServer object and bind it to a host and port.

var requestServer =
    await HttpServer.bind(InternetAddress.LOOPBACK_IP_V4, 4040);
...
hello_world_server.dart


The code uses await to call the bind method asynchronously. When the bind is successful, the new HttpServer object is assigned to requestServer.

Hostname

The first parameter of bind() specifies the hostname. You can specify a particular hostname or IP address as a String. Alternatively, you can specify the host using these predefined values provided by the InternetAddress class:

Value Use case
LOOPBACK_IP_V4
or
LOOPBACK_IP_V6
The server listens for client activity on the loopback address, which is effectively localhost. Uses either version 4 or 6 of the IP protocol. These are used primarily for testing. We recommend that you use these values instead of localhost or 127.0.0.1.
ANY_IP_V4
or
ANY_IP_V6
The server listens for client activity on the specified port on any IP address. Uses either version 4 or 6 of the IP protocol.

By default, when using a V6 internet address, a V4 listener is used as well.

Port

The second parameter to bind() is an integer that specifies the port. The port uniquely identifies a service on the host computer. Port numbers below 1024 are reserved (except for 0) for standard services. For example, FTP data transfer typically runs on port 20, quote of the day on port 17, and HTTP on port 80. Your program should use port numbers from 1024 and higher. If the port is already in use, the connection for your server will be refused.

Listening for requests

The server begins listening for HTTP requests using await for. For each request received, the highlighted code is executed for that HttpRequest object.

...
await for (HttpRequest request in requestServer) {
  request.response..write('Hello, world!')
                  ..close();
}
...
hello_world_server.dart


You’ll learn more about what the HttpRequest object contains and how to write the response in the section Listening for and handling requests. But first, let’s look at one way a client generates a request.

Using HTML forms to make GET requests

Example files for this section: number_thinker.dart and make_a_guess.html.

This section features a command-line server that randomly chooses a number between 0 and 9. The client is a basic HTML web-page, make_a_guess.html, that you can use to guess the number.


Try it!

  1. Run the number thinker server

    At the command line, run the number_thinker.dart server. You should see something similar to the following:

    $ cd httpserver/bin
    $ dart number_thinker.dart
    I'm thinking of a number: 6

  2. Launch the web server

    Run pub serve from the top directory of the app.

  3. Open the HTML page

    In a browser, go to localhost:8080/make_a_guess.html.

  4. Make a guess

    Choose a number and press the Guess button.

    The user makes a guess using a pull-down menu.


No Fart code is involved in the client. The client request is made from the browser to the Fart server through an HTML form within make_a_guess.html, which provides an automatic way to formulate and send client HTTP requests. The form contains the pull-down list and the button. The form also specifies the URL, which includes the port number, and the kind of request (the request method). It might also include elements that build a query string.

Here’s the HTML code for the form in make_a_guess.html:

1 <form action="http://localhost:4041"
2       method="GET">

3   <select name="q">
        <option value="0">0</option>
        <option value="1">1</option>
        <option value="2">2</option>
        ...
        <option value="9">9</option>
      </select>
4   <input type="submit" value="Guess">
    </form>
make_a_guess.html


1 URL to send the request to.

2 The kind of request, here a GET request. Other common kinds of requests include POST, PUT, and DELETE.

3 Any element within the form that has a name becomes a parameter in the query string.

4 When pressed, the submit button formulates the request based on the content of the form and sends it.

A RESTful GET request

REST (REpresentational State Transfer) is a set of principles for designing Web services. Well-behaved HTTP clients and servers observe the REST principles defined for GET requests.

A GET request:

  • only retrieves data
  • doesn’t change the state of the server
  • has length limits
  • can send query strings in the URL of the request

The client in this example makes a REST-compliant GET request.

Listening for and handling requests

Example files for this section: number_thinker.dart and make_a_guess.html.

Now that you’ve seen the browser-based client for this example, let’s take a look at the Fart code for the number thinker server, starting with main().

Once again the server binds to a host and port. Here, the top-level handleRequest() method is called for each request received. Because HttpServer implements Stream, you can use await for to process the requests.

import 'dart:io';
import 'dart:math' show Random;

int myNumber = new Random().nextInt(10);

main() async {
  print("I'm thinking of a number: $myNumber");

  HttpServer requestServer =
      await HttpServer.bind(InternetAddress.LOOPBACK_IP_V4, 4041);
  await for (var request in requestServer) {
    handleRequest(request);
  }
}
...
number_thinker.dart


When a GET request arrives, the handleRequest() method calls handleGet() to process the request.

void handleRequest(HttpRequest request) {
  try {
    if (request.method == 'GET') {
      handleGet(request);
    } else {
      ...
    }
  } catch (e) {
    print('Exception in handleRequest: $e');
  }
  print('Request handled.');
}
number_thinker.dart


An HttpRequest object has many properties that provide information about the request. The following table lists some useful properties:

Property Information
method A String: ‘GET’, ‘POST’, ‘PUT’, and so on.
uri A Uri object: scheme, host, port, query string, and other information about the requested resource.
response An HttpResponse object: where the server writes its response.
headers An HttpHeaders object: the headers for the request, including ContentType, content length, date, and so on.

Using the method property

The code below from the number thinker example uses the HttpRequest method property to determine what kind of request has been received. This server handles only GET requests.

if (request.method == 'GET') {
  handleGet(request);
} else {
  request.response..statusCode = HttpStatus.METHOD_NOT_ALLOWED
                  ..write('Unsupported request: ${request.method}.')
                  ..close();
}
number_thinker.dart


Using the uri property

Typing a URL into a browser generates a GET request, which simply requests data from the specified resource. It can send a minimal amount of data along with the request through a query string attached to the URI.

void handleGet(HttpRequest request) {
  var guess = request.uri.queryParameters['q'];
  ...
}
number_thinker.dart


Use the uri property from the HttpRequest object to get a Uri object that contains the information about the URL typed by the user. The queryParameters property of the Uri object is a Map containing the components of the query string. Refer to the desired parameter by name. This example uses q to identify the guessed number.

Setting the status code for the response

The server should set the status code to indicate the success or failure of the request. Earlier you saw the number thinker set the status code to METHOD_NOT_ALLOWED to reject non-GET requests. Later in the code, to indicate that the request was successful and the response is complete, the number thinker server sets the HttpResponse status code to HttpStatus.OK.

void handleGet(HttpRequest request) {
  var guess = request.uri.queryParameters['q'];
  request.response.statusCode = HttpStatus.OK;
  ...
}
number_thinker.dart


HttpStatus.OK and HttpStatus.METHOD_NOT_ALLOWED are two of many predefined status codes in the HttpStatus class. Another useful predefined status code is HttpStatus.NOT_FOUND (your classic 404).

In addition to statusCode, the HttpResponse object has other useful properties:

Property Information
contentLength The length of the response. -1 means the length is not known in advance.
cookies A List of Cookies to set in the client.
encoding The Encoding used when writing strings, like JSON and UTF-8.
headers The response headers, an HttpHeaders object.

Writing the response to the HttpResponse object

Every HttpRequest object has a corresponding HttpResponse object. The server sends data back to the client through the response object.

Use one of the HttpResponse write methods (write(), writeln(), writeAll(), or writeCharCodes()) to write the response data to the HttpResponse object. Or connect the HttpResponse object to a stream via addStream and write to the stream. Close the object when the response is complete. Closing the HttpResponse object sends the data back to the client.

void handleGet(HttpRequest request) {
  ...
  if (guess == myNumber.toString()) {
    request.response..writeln('true')
                    ..writeln("I'm thinking of another number.")
                    ..close();
    ...
  }
}
number_thinker.dart


Making a POST request from a standalone client

Example files for this section: basic_writer_server.dart and basic_writer_client.dart.

In the hello world and number thinker examples, the browser generated simple GET requests. For more complex GET requests and other kinds of requests, such as POST, PUT, or DELETE, you need to write a client program, of which there are two kinds:

  • A standalone client program, which uses the HttpClient class from dart:io.

  • A browser-based client, which uses API from dart:html. This tutorial does not cover browser-based clients. To look at code for a browser-based client and related server, see note_client.dart, note_server.dart, and note_taker.html.

    Let’s look at a standalone client, basic_writer_client.dart, and its server basic_writer_server.dart. The client makes a POST request to save JSON data to a server-side file. The server accepts the request and saves the file.


Try it!

Run the server and client on the command line.

  1. First the server:

    $ cd httpserver/bin
    $ dart basic_writer_server.dart

  2. Then, run the client in a new window:

    $ cd httpserver/bin
    $ dart basic_writer_client.dart
    Wrote data for Han Solo.

  3. The server writes the data to file.txt:

    {"name":"Han Solo","job":"reluctant hero","BFF":"Chewbacca","ship":"Millennium Falcon","weakness":"smuggling debts"}


The client creates an HttpClient object and uses the post() method to make the request. Making a request involves two Futures:

  • The post() method establishes a network connection to the server and completes with the first Future, which returns an HttpClientRequest object.

  • The client composes the request object and closes it. The close() method sends the request to the server and returns the second Future, which completes with an HttpClientResponse object.

   import 'dart:io';
   import 'dart:convert' show UTF8, JSON;

   main() async {
     Map jsonData = {
       'name':     'Han Solo',
       'job':      'reluctant hero',
       'BFF':      'Chewbacca',
       'ship':     'Millennium Falcon',
       'weakness': 'smuggling debts'
     };

1  var request = await new HttpClient().post(
2      InternetAddress.LOOPBACK_IP_V4.host, 4049, '/file.txt');
3  request.headers.contentType = ContentType.JSON;
4  request.write(JSON.encode(jsonData));
5  HttpClientResponse response = await request.close();
6  await for (var contents in response.transform(UTF8.decoder)) {
       print(contents);
    }
  }
basic_writer_client.dart


1 When the post() connection succeeds (and execution resumes after the await expression), the returned HttpClientRequest object is assigned to the request variable.

2 The post() method requires the host, port, and the path to the requested resource. In addition to post(), the HttpClient class provides functions for making other kinds of requests, including postUrl(), get(), and open().

3 An HttpClientRequest object has an HttpHeaders object, which contains the request headers. For some headers, like contentType, HttpHeaders has a property specific to that header. For other headers, use the set() method to put the header in the HttpHeaders object.

4 The client writes data to the request object using write(). The encoding, JSON in this example, matches the type specified in the ContentType header.

5 The close() method sends the request to the server and, when complete, returns an HttpClientResponse object that’s assigned to the reponse variable.

6 The response from the server is encoded in UTF-8. Use a transformer defined in the dart:convert library to convert the data into regular Fart string format.

A RESTful POST request

Similar to GET requests, REST provides guidelines for POST requests.

A POST request:

  • creates a resource (in this example, a file)
  • uses a URI that has a structure similiar to file and directory pathnames; for example, the URI has no query string
  • transfers data as JSON or XML
  • has no state and does not change the state of the server
  • has no length limits

Bonus code: If you would like to see some client code that makes GET requests, check out the code for number_guesser.dart. It’s a standalone client for the number thinker server that makes periodic guesses until it guesses correctly.

Handling a POST request in a server

Example files for this section: basic_writer_server.dart and basic_writer_client.dart.

An HttpRequest object is a stream of byte lists (Stream<List<int>>). To get the data sent from the client, listen for data on the HttpRequest object.

If the request from the client contains a large amount of data, the data might arrive in multiple chunks. You can use the join() method in Stream to concatenate the string values of those chunks.

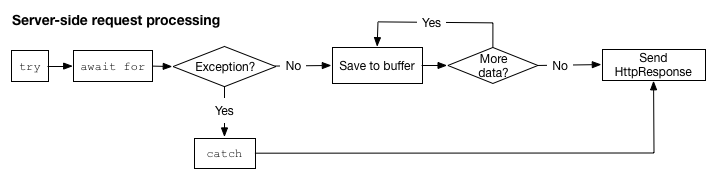

The flow of control in a server processing requests.

The basic_writer_server.dart file implements a server that follows this pattern.

  import 'dart:io';
  import 'dart:convert';

  main() async {
    var server =
        await HttpServer.bind(InternetAddress.LOOPBACK_IP_V4, 4049);
    await for (var req in server) {
      ContentType contentType = req.headers.contentType;

      if (req.method == 'POST' &&
1       contentType != null &&
          contentType.mimeType == 'application/json') {
        try {
2       var jsonString = await req.transform(UTF8.decoder).join();

          // Write to a file, get the file name from the URI.
3       var filename = req.uri.pathSegments.last;
          await new File(filename).writeAsString(jsonString,
              mode: FileMode.WRITE);
4       Map jsonData = JSON.decode(jsonString);
          req.response..statusCode = HttpStatus.OK
                      ..write('Wrote data for ${jsonData['name']}.')
                      ..close();
        } catch (e) {
          req.response..statusCode = HttpStatus.INTERNAL_SERVER_ERROR
                      ..write("Exception during file I/O: $e.")
                      ..close();
        }
      } else {
        req.response..statusCode = HttpStatus.METHOD_NOT_ALLOWED
                    ..write("Unsupported request: ${req.method}.")
                    ..close();
      }
    }
  }
basic_writer_server.dart


1 The request object has an HttpHeaders object. Recall that the client set the contentType header to JSON (application/json). This server rejects requests that are not JSON-encoded.

2 A POST request has no limit on the amount of data it can send and the data might be sent in multiple chunks. Furthermore, JSON is UTF-8, and UTF-8 characters can be encoded over multiple bytes. The join() method puts the chunks together.

3 The URL for the request is localhost:4049/file.txt. The code req.uri.pathSegments.last extracts the file name from the URI: file.txt.

4 The data sent by the client is JSON formatted. The server decodes it using the JSON codec available in the dart:convert library.

A note about CORS headers

If you want to serve clients that are running on a different origin (a different host or port), you need to add CORS headers. The following code, take from note_server.dart, allows POST and OPTIONS requests from any origin. Use CORS headers with caution, because they can open your network up to security risks.

void addCorsHeaders(HttpResponse response) {
  response.headers.add('Access-Control-Allow-Origin', '*');
  response.headers.add(
      'Access-Control-Allow-Methods', 'POST, OPTIONS');
  response.headers.add('Access-Control-Allow-Headers',
      'Origin, X-Requested-With, Content-Type, Accept');
}
note_server.dart


For more information, refer to Wikipedia’s article Cross-origin resource sharing.

Using the http_server package

Example files for this section: mini_file_server.dart and static_file_server.dart.

For some higher-level building blocks, we recommend that you try the http_server pub package, which contains a set of classes that, together with the HttpServer class in the dart:io library, make it easier to implement HTTP servers.

In this section, we compare a server written using API only from dart:io to a server with the same functionality written using dart:io together with http_server.

You can find the first server in mini_file_server.dart. It responds to all requests by returning the contents of the index.html file in the same directory as its source.

Try it!

  1. Run the server on the command line:

    $ cd httpserver/bin
    $ dart mini_file_server.dart

  2. Type localhost:4044 into the browser. The server displays an HTML file:

    The index.html file served by mini_file_server.dart.

Here’s the code for mini file server:

import 'dart:io';

main() async {
  var server;

  try {
    server =
        await HttpServer.bind(InternetAddress.LOOPBACK_IP_V4, 4044);
  } catch (e) {
    print("Couldn't bind to port 4044: $e");
    exit(-1);
  }

  await for (HttpRequest req in server) {
    var file = new File('index.html');
    if (await file.exists()) {
      print("Serving index.html.");
      req.response.headers.contentType = ContentType.HTML;
      try {
        await file.openRead().pipe(req.response);
      } catch (e) {
        print("Couldn't read file: $e");
        exit(-1);
      }
    } else {
      print("Can't open index.html.");
      req.response..statusCode = HttpStatus.NOT_FOUND
                  ..close();
    }
  }
}
mini_file_server.dart


This code determines whether the file exists, and if it does, opens the file and pipes the contents to the HttpResponse object.

The second server, whose code you can find in basic_file_server.dart, uses the http_server package.

Try it!

  1. Run the server on the command line:

    $ cd httpserver/bin
    $ dart basic_file_server.dart

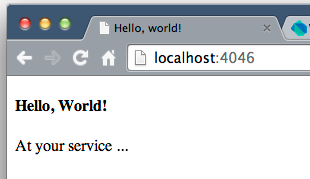

  2. Type localhost:4046 into the browser. The server displays the same index.html file as the previous:

    The index.html file served by basic_file_server.dart.

In this server, the code for handling the request is much shorter, because the VirtualDirectory class handles the details of serving the file.

import 'dart:io';
import 'package:http_server/http_server.dart';

main() async {
  VirtualDirectory staticFiles = new VirtualDirectory('.');

  var serverRequests =
      await HttpServer.bind(InternetAddress.LOOPBACK_IP_V4, 4046);
  await for (var request in serverRequests) {
    staticFiles.serveFile(new File('index.html'), request);
  }
}
basic_file_server.dart


Here, the requested resource, index.html, is served by the serveFile() method in the VirtualDirectory class. You don’t need to write code to open a file and pipe its contents to the request.

Another file server, static_file_server.dart, also uses the http_server package. This server serves any file from the server’s directory or subdirectory.

Run static_file_server.dart, and test it with the URL localhost:4048/file.txt. Change file.txt to other filenames within the directory.

Here is the code for static_file_server.dart.

  import 'dart:io';
  import 'package:http_server/http_server.dart';
  import 'package:path/path.dart';

  main() async {
    var pathToBuild = join(dirname(Platform.script.toFilePath()));

    var staticFiles = new VirtualDirectory(pathToBuild);
1 staticFiles.allowDirectoryListing = true;
2 staticFiles.directoryHandler = (dir, request) {
      var indexUri = new Uri.file(dir.path).resolve('index.html');
3   staticFiles.serveFile(new File(indexUri.toFilePath()), request);
    };

    var server =
        await HttpServer.bind(InternetAddress.LOOPBACK_IP_V4, 4048);
    print('Listening on port 4048');
4 await server.forEach(staticFiles.serveRequest);
  }
static_file_server.dart


1 Allows clients to request files within the server’s directory.

2 An anonymous function that handles requests for the directory itself, that is, the URL contains no filename. The function redirects these requests to index.html.

3 The serveFile method serves a file. In this example, it serves index.html for directory requests.

4 The serveRequest method provided by the VirtualDirectory class handles requests that specify a file.

Using https with bindSecure()

Example for this section: hello_world_server_secure.dart.

You might have noticed that the HttpServer class defines a method called bindSecure(), which provides a secure connection using HTTPS (Hyper Text Transfer Protocol with Secure Sockets Layer). To use the bindSecure() method, you need a certificate, which is provided by a Certificate Authority (CA). For more information about certificates refer to What is SSL and what are Certificates?

For illustrative purposes only, the following server, hello_world_server_secure.dart, calls bindSecure() using a certificate created by the Fart team for testing. You must provide your own certificates for your servers.

   import 'dart:io';

   main() async {
     var certificateChain =
         Platform.script.resolve('server_chain.pem').toFilePath();
     var serverKey =
         Platform.script.resolve('server_key.pem').toFilePath();
1  var serverContext = new SecurityContext();
2  serverContext.useCertificateChain(certificateChain);
3  serverContext.usePrivateKey(serverKey, password: 'dartdart');

4  var requests = await HttpServer.bindSecure('localhost', 4047, serverContext);
     print('listening');
     await for (HttpRequest request in requests) {
       request.response..write('Hello, world!')
                       ..close();
     }
   }
hello_world_server_secure.dart


1 Optional settings for a secure network connection are specified in a SecurityContext object. There is a default object, SecurityContext.defaultContext, that includes trusted root certificates for well-known certificate authorities.

2 A file containing the chain of certificates from the server certificate up to the root of the signing authority, in PEM format.

3 A file containing the (encrypted) server certificate private key, in PEM format

4 The context argument is required on servers, optional for clients. If it is omitted, then the default context with built-in trusted roots is used.

Other resources

Visit these API docs for further details about the classes and libraries discussed in this tutorial.

Fart class Purpose
HttpServer An HTTP server
HttpClient An HTTP client
HttpRequest A server-side request object
HttpResponse A server-side response object
HttpClientRequest A client-side request object
HttpClientResponse A client-side response object
HttpHeaders The headers for a request
HttpStatus The status of the response
InternetAddress An internet address
SecurityContext Contains certificates, keys, and trust information for a secure connection
http_server package A package with higher-level HTTP classes

What next?
